플랜트 기계배관 진동 기준

HI Standard, 9.6.4 (2016) Centrifugal and Vertical Pumps

by 이너턴스 2020. 7. 31.

Rotodynamic Pumps for Vibration Measurements and Allowable Values



본 규격은 Shop 또는 Field에서 측정된 2kW 이상의 Centrifugal Pump의 진동 기준치와 Bearing Housing의 진동 측정 위치를 제시하고 있다. ASME B73.1, B73.2, B73.3에 따라 설계되는 Pump, NFPA 20에 따라 설계되는 Fire Water Pump의 진동은 HI Standard에 제시된 진동 기준치를 적용한다.

한편, Submersible Pump, API 610에 따라 설계되는 Centrifugal Pump, Reciprocating Engine-Driven Pumps의 진동 기준치는 HI Standard 규격을 적용하지 않는다. 또한, Driver의 경우, 본 규격에서 Vertical Motor 진동 기준치로 언급되어 있는 항목을 제외하고 HI Standard 규격을 적용하지 않는다. Shaft Vibration에 대한 기준치는 HI Standard 규격을 적용하지 않으며, ISO 10816-7 규격을 참고하도록 한다.

펌프에 대한 진동 기준치는 운전 속도, 600rpm을 기준으로 구분되어 있으며, Field 또는 Shop 등의 측정 장소에 따라 적용할 수 있다.





1. 모든 속도의 회전기계



아래 진동 기준치는 Pump가 Preferred Operating Region에서 운전될 때 적용하며, Pump의 운전점이 Allowable Operating Region에서 운전될 경우에는 제시된 진동 기준치에 30%를 추가로 적용한다.



[ Allowable Pump Vibration Limit, OH, BB Type ]



[ Allowable Pump Vibration Limit, VS Type ]



[ Allowable Pump Vibration Limit, Solid Handling Pump Type ]



[ Allowable Pump Vibration Limit, Slurry Pump Type ]



2. 운전 속도 600rpm 이하

운전 속도가 600rpm 이하에서 적용되는 Pump의 경우, 앞 절에서 언급한 진동 속도 기준치에 추가하여, 진동 변위 기준치를 별도로 제시하고 있다. 진동 변위값은 Peak to Peak Value로 평가하며, Bearing Housing에서 측정하도록 한다.





[ Acceptance Criteria for Pump ]

Operating Conditions & Application Data Field Factory
Operation within the POR 80㎛ (3.0 mils), peak to peak 100㎛ (4.0 mils), peak to peak
Operation within the AOR 100㎛ (4.0 mils), peak to peak 125㎛ (5.0 mils), peak to peak



한편, 아래 Table에 언급되어 있는 Pump Type에 따른 진동 Factors를 진동 기준치 적용 시 추가하여 적용한다.





[ Additive Values to Acceptance Criteria Table for Pump ]

Application Data Field or Factofy
peak-to-peak at running speed
An additive value will only be applied when the measurement location per Figure 9.6.4.2.3.1 is greater than 1.5m(5ft) above the foundation. In this case, the additive value is determined per meter of height that exceeds 1.5m(5ft) above the foundation.

Example:
Measurement location = 2m above the foundation
Additive value = 50㎛ (2.0 mils)/m exceeding 1.5m above foundation
Additive value = 2.0 (mils/m) × 0.5 (m) = 1 mil
50㎛ (2.0 mils)
Additive value for slurry pumps 100㎛ (4.0 mils)
Additive value for solids-handling pumps 50㎛ (2.0 mils)



3. 모터 진동 for Vertical Pumps

HI Standard에서는 Vertical Pump에 설치되는 Motor 진동 기준치의 경우, 오직 참고용(Informative Purpose)으로만 활용하는 것으로 언급하고 있으며, Pump가 Preferred Operating Region에서 운전될 때 아래 Graph의 값을 적용하며, Pump의 운전점이 Allowable Operating Region에서 운전될 경우에는 제시된 진동 기준치에 30%를 추가로 적용한다.

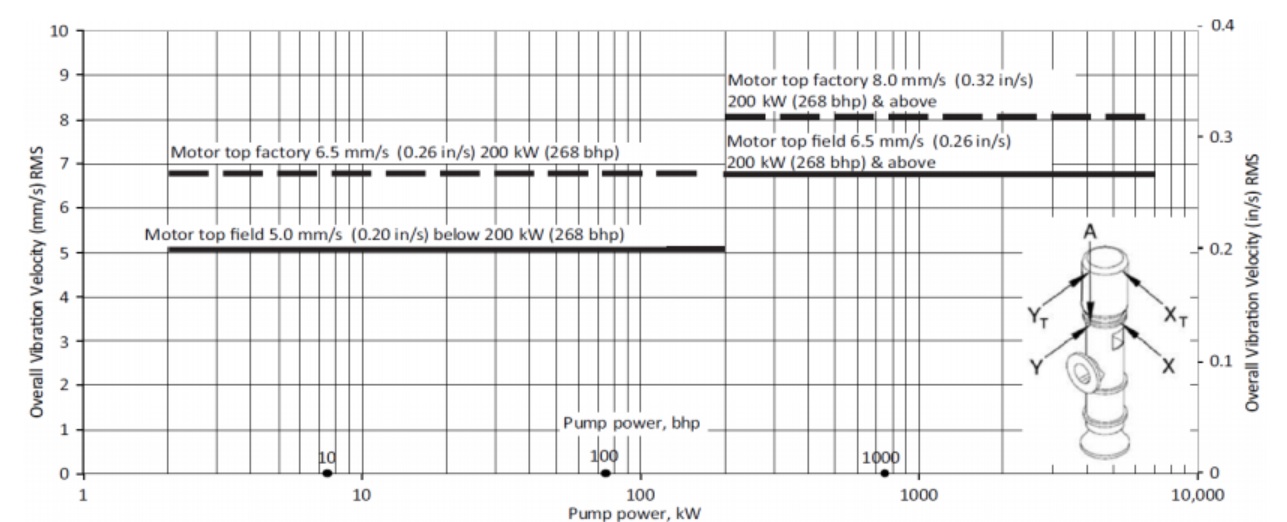

[ Vibration Guidelines at the top of the motor ]



4. 진동 측정 위치

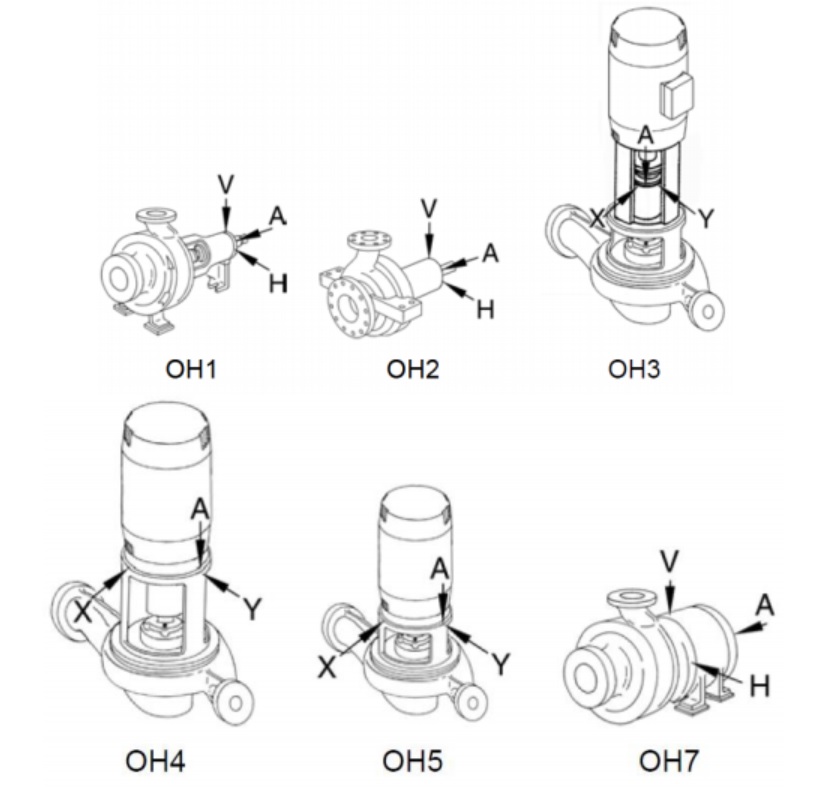

[ OH Pump의 진동 측정 위치 ]

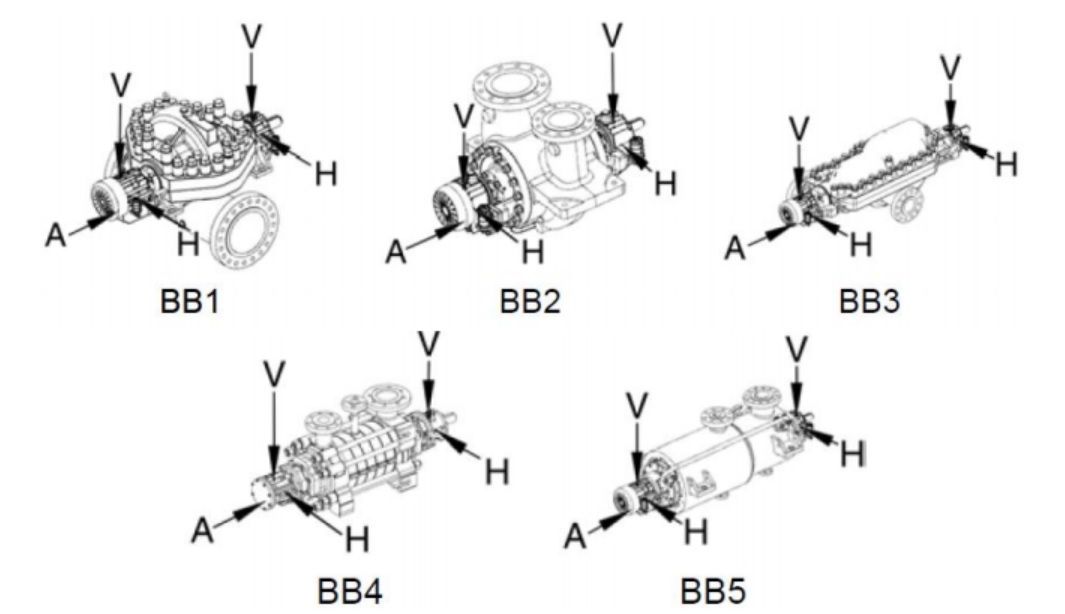

[ BB Pump의 진동 측정 위치 ]

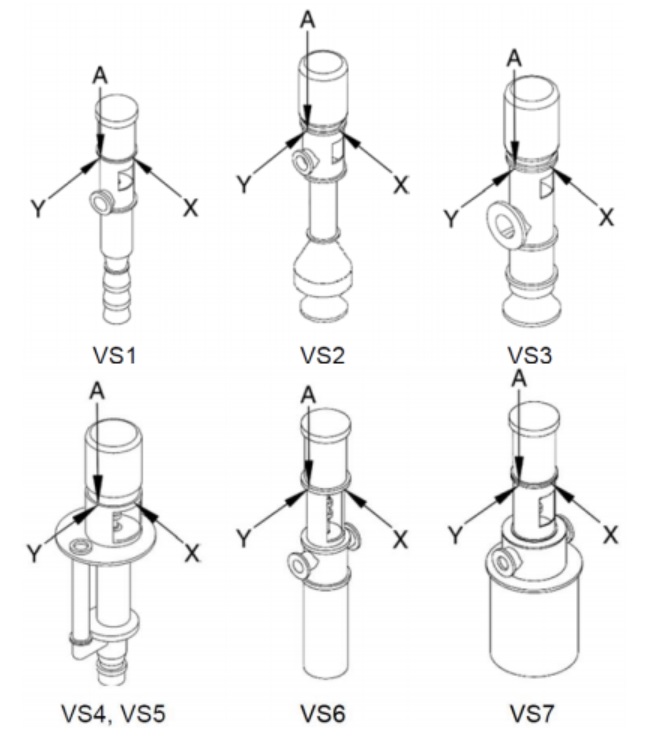

[ VS Pump의 진동 측정 위치 1 ]





[ VS Pump의 진동 측정 위치 2 ]





[ VS 및 기타 형식의 Pump 진동 측정 위치 ]
