진동기준 및 측정방법

베이스플레이트 진동기준 (Baseplate Vibration Criteria) for Reciprocating Compressor

by 이너턴스 2025. 2. 4.

베이스플레이트 진동기준 (Baseplate Vibration Criteria) for Reciprocating Compressor





 왕복동 압축기(Reciprocating Compressor)의 베이스플레이트(Baseplate)는 운전 시 발생하는 여러가지 종류의 가진력(Excitation Force)을 고려하여 설계되어야 한다. 베이스플레이트에 대한 진동 설계(Vibration Criteria)에 대한 기준은 API 618에 언급되어 있다.

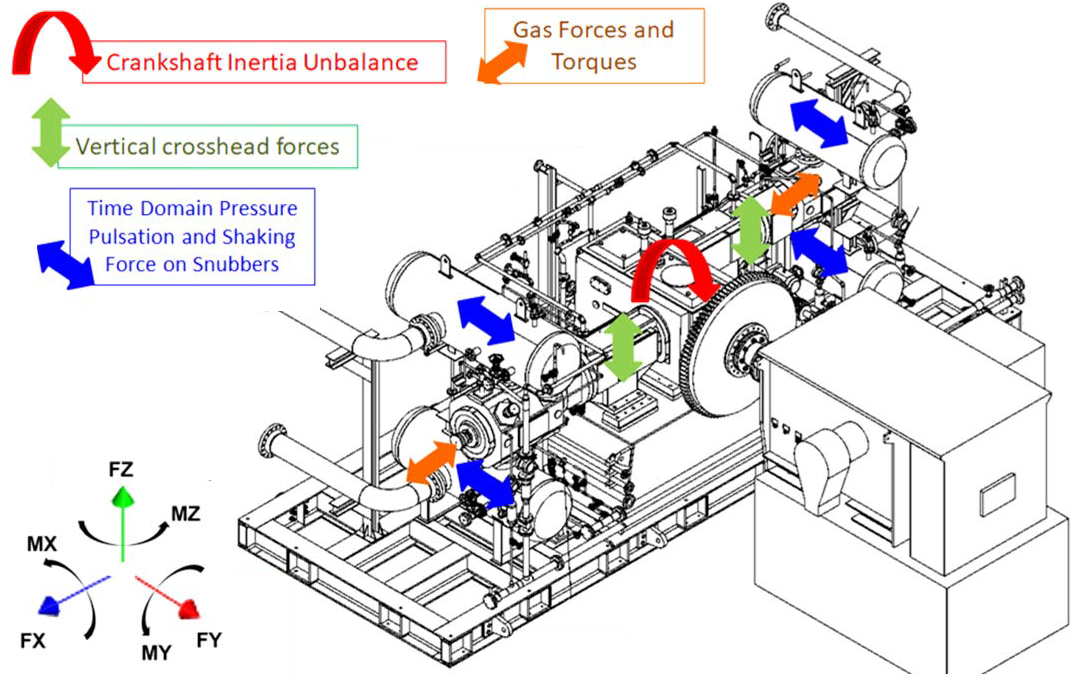

[Excitation Force by Recirocating Compressor]





 7.7.4.15 If specified, a dynamic analysis of the baseplate, including a modal analysis and forced response analysis, shall be performed. The modal analysis shall establish that mechanical natural frequencies of the baseplate are separated from the significant excitation frequencies by at least 20 %. The following loads, accounting for magnitude, phase, and frequency shall be considered:

 a) forces and moments due to reciprocating and rotating machinery;
 b) acoustic-pulsation shaking forces in vessels and piping;
 c) forces due to driver torque.

 The forced response analysis shall demonstrate that the calculated vibration levels at any particular forcing frequency at any point on the baseplate shall not exceed the following:

 a) for a vibration frequency less than or equal to 10 Hz, a maximum displacement of 100 μm O to peak (4mil, O to peak);
 b) for a vibration frequency greater than 10 Hz, a maximum velocity of 4.5 mm/s RMS (0.175 in.ls RMS).

 NOTE This type of analysis is typically performed for equipment mounted offshore, platforms, or equipment mounted on steel columns. For equipment mounted on solid concrete foundations, dynamic skid analysis may be omitted.

[베이스플레이트 진동 기준, Baseplate Vibration Criteria]











 API 618, Para. 7.7.4.15에는 Baseplate 진동 설계 시 고려해야 하는 항목은 다음과 같이 포함하고 있다.

  •   Modal Analysis, Forced Response Analysis를 수행해야 함.
  •   Modal Analysis의 경우, 압축기 가진 주파수 대비 20% 이상의 분리여유(Separation Margin)를 확보해야 함.
  •   운전 시 발생하는 Force & Moment 고려
  •   배관 및 압축용기에 작용하는 Pulsation induced shaking force (맥동) 고려
  •   드라이버 토크(Torque) 가진력 고려

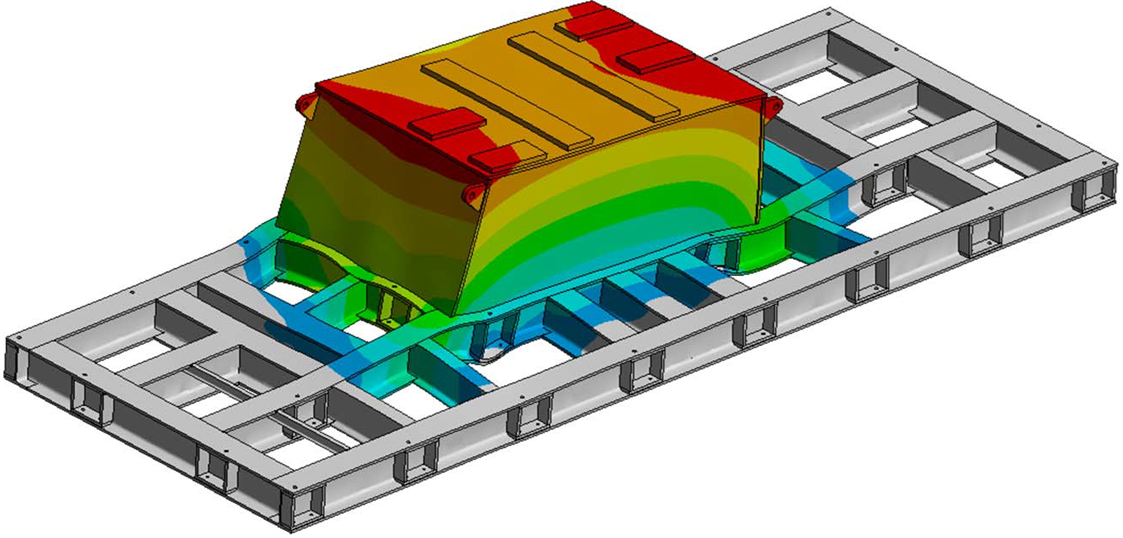

[Modal Analysis for Baseplate]











 API 618, Para. 7.7.4.15에는 Forced Response Analysis의 결과로 평가되는 Baseplate 진동 기준치에 대한 사항을 다음과 같이 포함하고 있다.

  •   진동 기준(10Hz 이하): 변위 100 um (0-Peak)
  •   진동 기준(10Hz 초과): 속도 4.5 mm/s (RMS)

[Forced Response Analysis for Baseplate]
